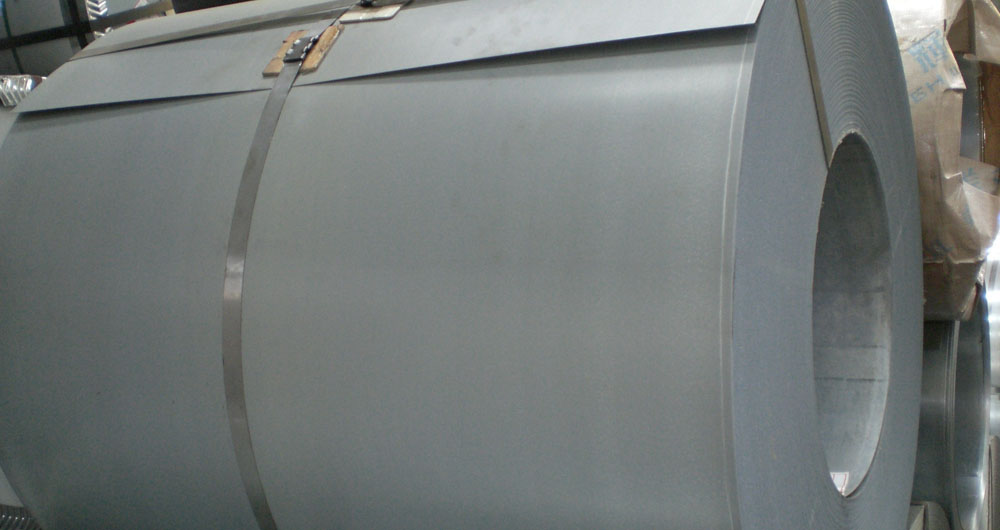

Galvannealed steel (GA) coil/sheet

Galvannealed steel (GA) coil/sheet

Induction: Galvannealed is a carbon steel plate that is continuously hot-dipped on both sides of galvanized steel, and an alloying process is performed to diffuse atoms to the galvanized layer. Zinc-iron coatings are harder and more scratch resistant than conventional galvanized coatings. Zinc-iron alloys are specifically designed for use in painting. Galvannealed have excellent resistance to flaking and blistering when compared to conventional galvanized steels when applied with suitable primers and coatings.

Specifications of Galvannealed Steel Coil

Type

JIS G3302、ASTM A653

Grade

SGCC
SGCD 1、SGCD 2、SGCD 3、SGCD 4
SGC 340、SGC 400、SGC 440、SGC 490

Thickness Range

0.2 mm – 2 mm

Width

914 mm – 1524 mm

Weight

According actual weight

Inside Diameter

508 mm / 610 mm

Coating Mass





Coating Thickness(MM)

Mass Weight(g/m2)

Coating Mass

F04

0.008

40

F06

0.013

60

F08

0.017

80

F10

0.021

100

F12

0.026

120

F18

0.034

180

Characteristic

corrosion resistance, acid resistance, rust prevention

easy to weld, easy to process, good sprayability

Application

Automotive

automobile sheet metal, automotive parts

Home appliance

home appliance parts, air-conditioner, washing machine

Office furniture

cabinet, display stand

Outdoor product

Switchboard, distribution box

Construct

Compartment parts
